Concealed Hinge Jig

The hinge cup drilling jig ensures quick and accurate installation of 35mm hinges without lengthy measuring. Adjustable offset of 3–6 mm from the door edge. The magnetic jig for precise screw hole drilling makes it easier to install Blum, Strong, and Hettich hinges. Ideal for cabinetmakers.

• Concealed hinges made simple and quick.
• For 35 mm hinge cups, compatible with Blum, Strong or Hettich.

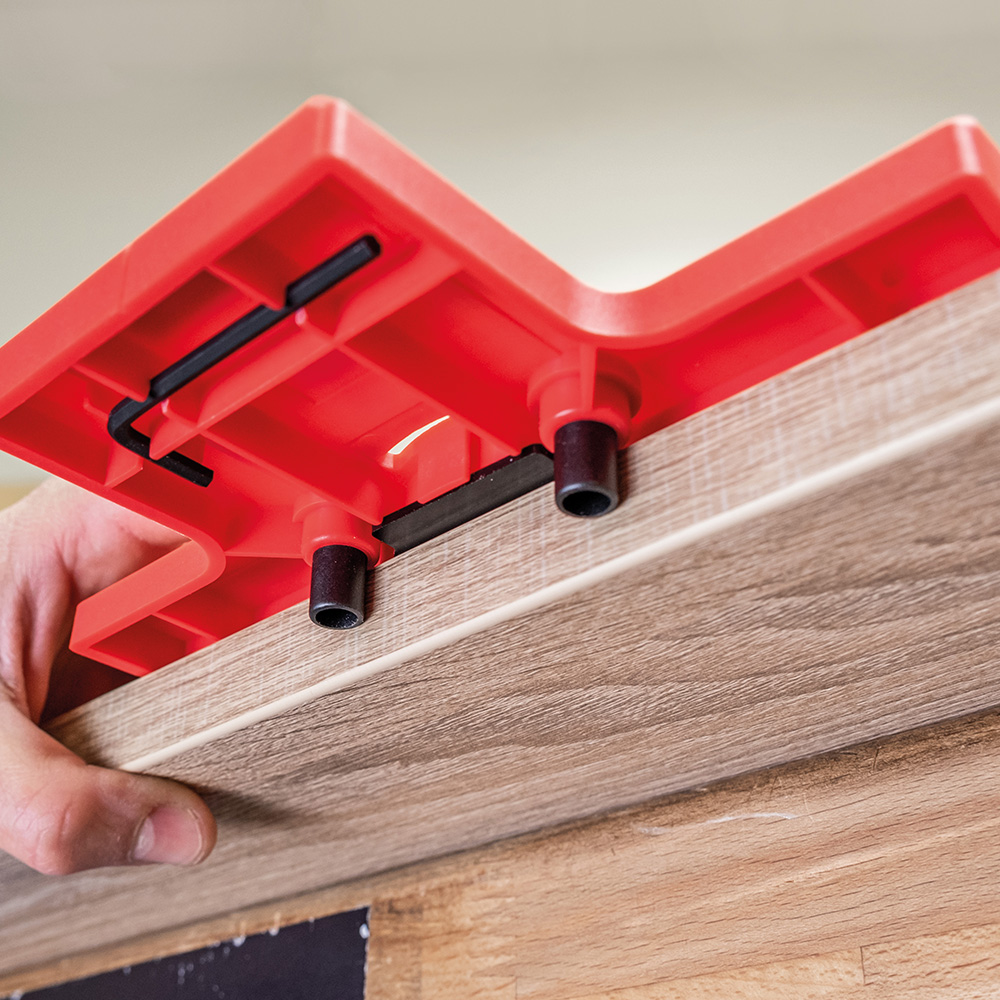

• Adjustable offset from the door edge at a distance of 3, 4, 5, 6 mm.

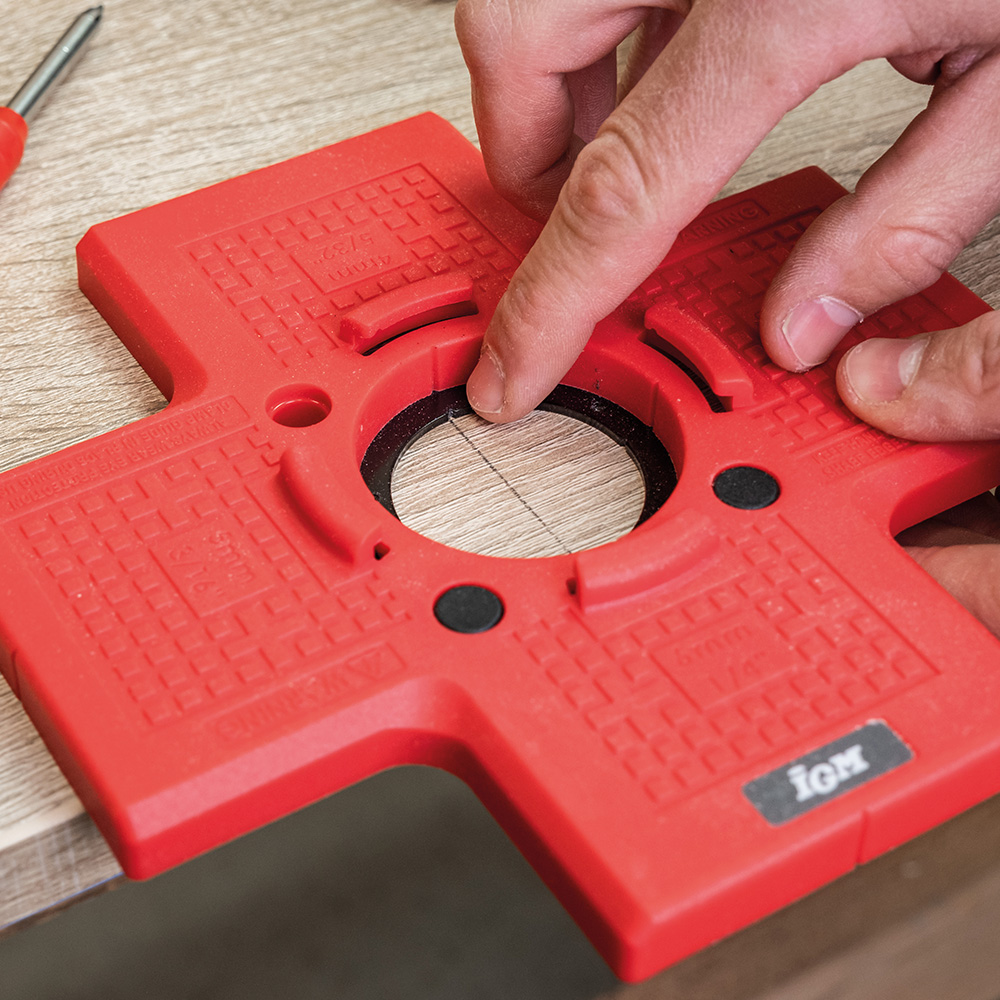

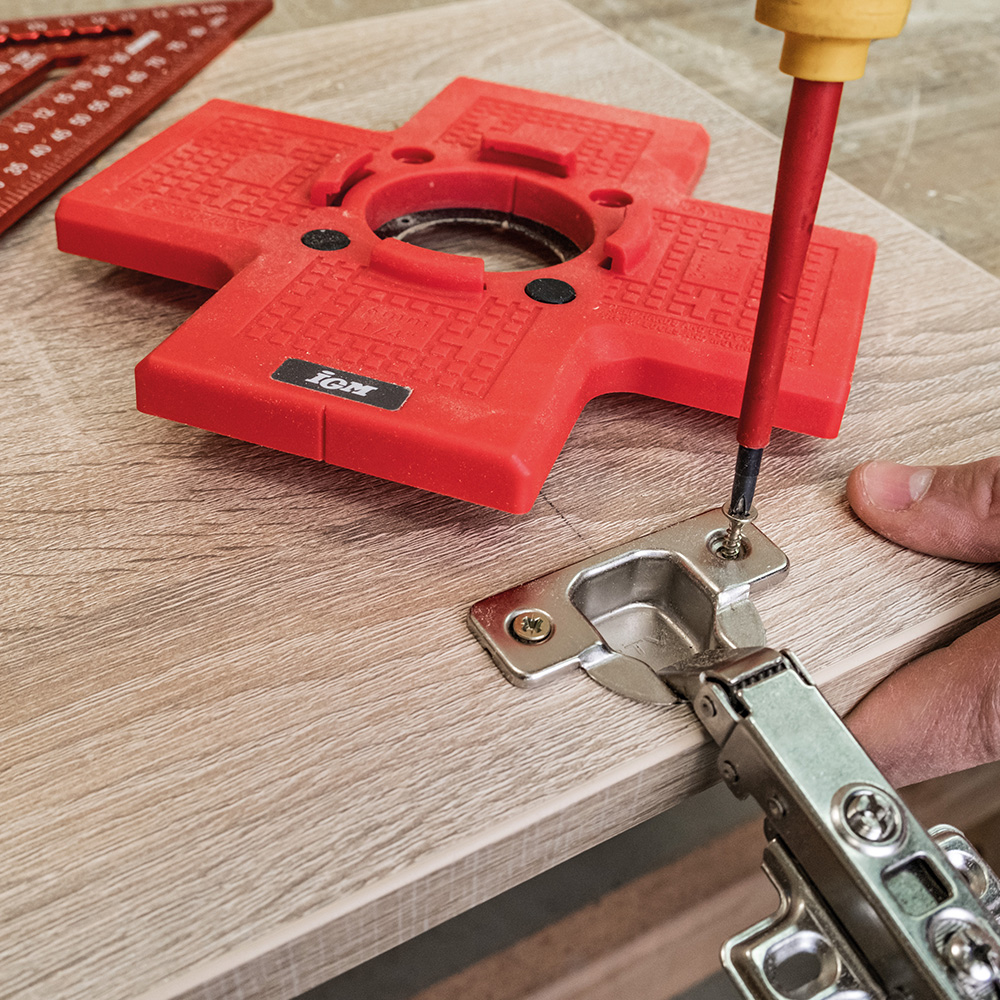

• Magnetic template for pilot holes.

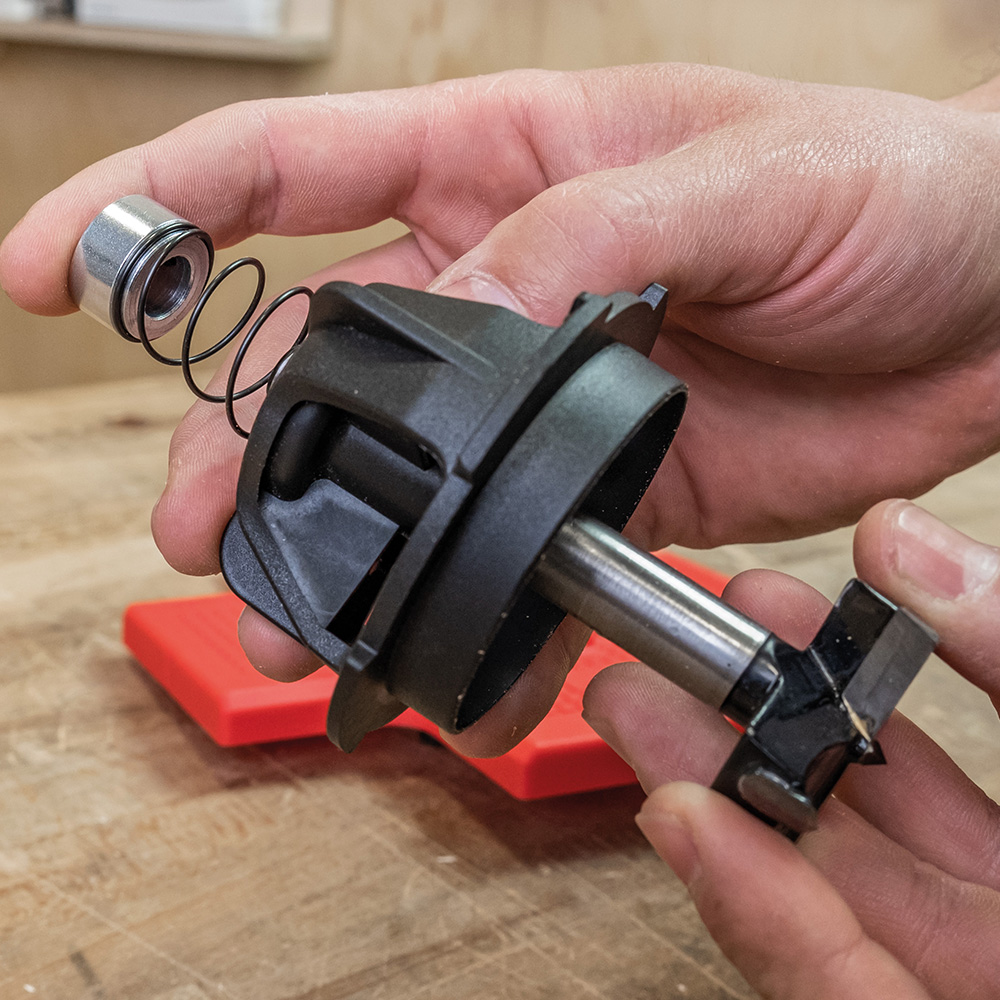

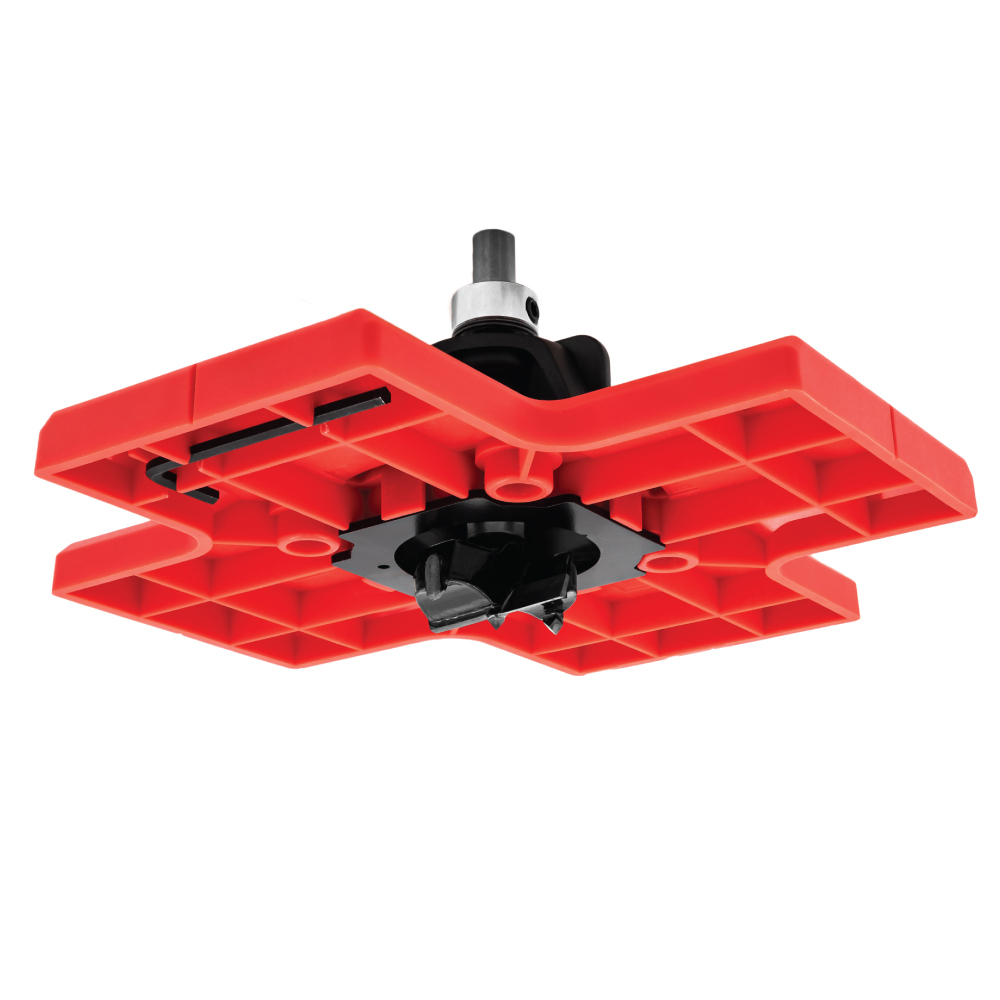

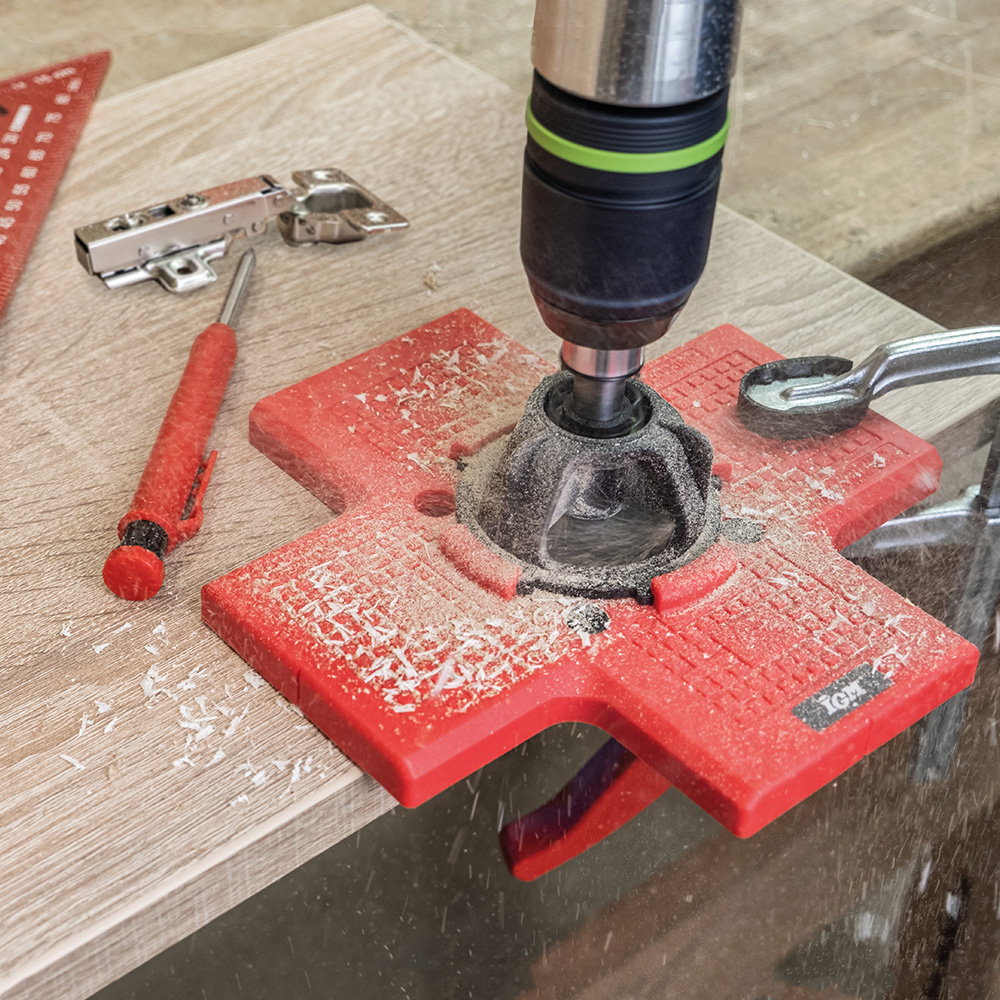

This jig for drilling 35 mm hinge cups makes installing cabinet doors simple. You will be able to install hinges in no time without the hassle of lengthy measuring and marking. The 35 mm Forstner bit with a round shank is locked in the jig and can be inserted in any drill. Thanks to the stop collar, you can always drill the cup to the same depth, in a material 18 mm thick at minimum. The template is supplied with plastic pins that determine the offset of the cup from the edge of the door at a distance of 3 mm, 4 mm, 5 mm or 6 mm, and a magnetic pilot hole plate for hinge screws (drill bit not included). Pilot holes are spaced at 45 mm and 9,5 mm from the cup axis, which are exact measurements for hinges such as Blum, Strong or Hettich.

• Cup Diameter: 35 mm
• Offset from Edge: 3, 4, 5, 6 mm
• Minimum Material Thickness: 18 mm
• Recommended Drilling Speed: 1700 – 2400 RPM

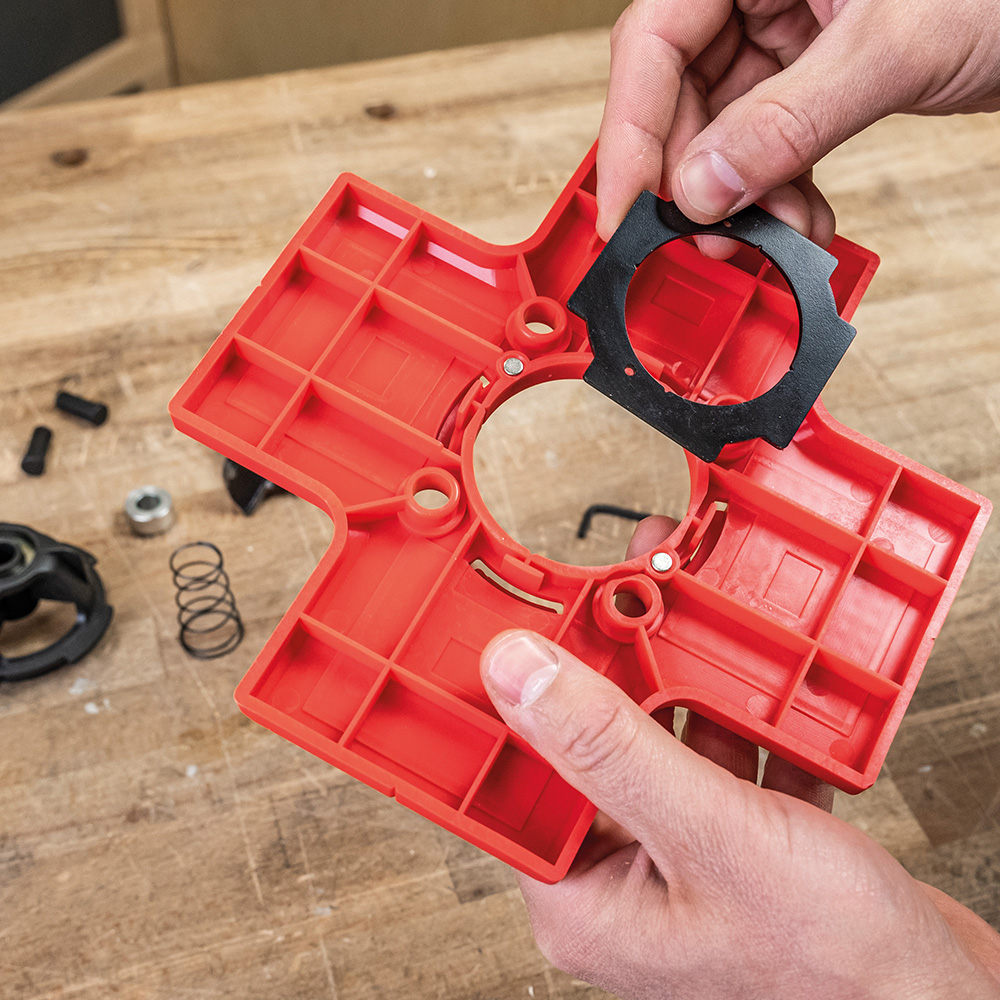

Package Contents:
• Concealed Hinge Jig
• Forstner Bit 35 mm
• Magnetic Pilot Hole Plate
• Stop Collar
• 2x Plastic Pin
• Hex Key 3 mm
